移動200KW柴油發電機組

移動200KW柴油發電機組

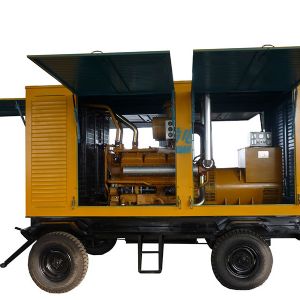

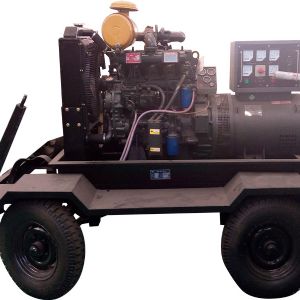

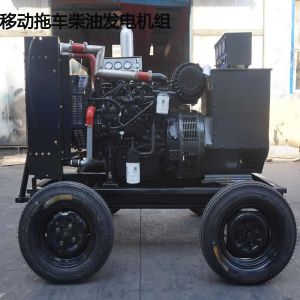

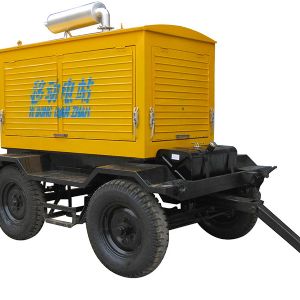

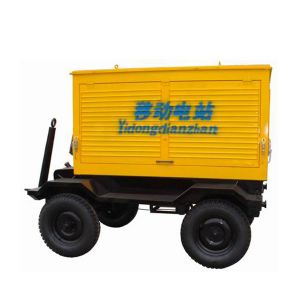

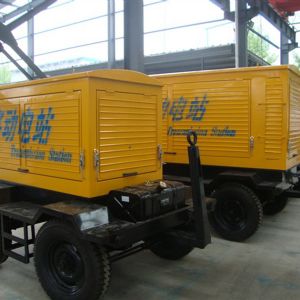

移動發電機組 Mobile generating set
移動柴油發電機組有多種結構和功能,有手推式、三輪、四輪、汽車電站、拖車電站、移動低噪音。移動集裝箱電站等。該系統是我公司參照多國家移動電站結構,自行設計和生產的,具有良好的操作性能和安全性能。移動電站車架采用槽梁焊接成框架結構,節點選擇合理、強度高、剛性好,同時裝有鋼板彈簧懸架結構,拖車采用高度可調節插銷式牽引架,適用于各種高度牽引車,采用圓形鋼管焊接直通式車軸,結構緊湊,安全可靠。
The mobile diesel generator set has many structures and functions,including push type, three wheel, four wheel, automobile power station, trailer power station and mobile low noise. Mobile container power station, etc. This system is designed and produced by our company according to the structure of multi-national mobile power station, and has good operation performance and safety performance. Mobile power station frame with groove beam welded frame structure, node selection is reasonable, high strength, good rigidity, equipped with leaf spring suspension structure at the same time, the trailer adopts height adjustable bolt type drawing frame, suitable for all kinds of tractor, USES the circular steel tube welding cut-through axle, compact structure, safe and reliable.

1、牽引:采用活動式掛鉤,360°轉盤、轉向靈活、確保行駛中的安全。
Traction: the activity type, 360 ° rotating disc, flexible steering, to ensure the safety of driving.

2、制動:同時具有可靠的手搖式剎車系統和氣剎接口,確保行駛中的安全性。
Braking: it also has reliable hand brake system and air brake interface to ensure the safety of driving.

3、支撐:為保證電源車操作時的穩定性,可選配4只機械或液壓支撐裝置。
Support: in order to ensure the stability of power vehicle operation, 4 mechanical or hydraulic support devices can be selected.

4、門窗:前部有通風窗,后部有對開大門,兩側有門可供操作人員操作。
Doors and Windows: there is a ventilation window in the front and a door in the back. There are doors on both sides for operators to operate.

5、照明:車廂內有吸頂防爆燈,右側有工作臺,并配有工作臺燈,方便工作人員操作。
Lighting: there is an anti-explosion lamp on the top of the car and a  working table on the right.

6、防音:電源車的車箱、車內等全部用雙層裝飾,并裝有吸音板消音,排氣管用保溫棉包裹,噪音最低可控制在72db以內。
Sound proof: the car box and the car of the power car are all decorated with double layers and equipped with sound absorbing board. The exhaust pipe is wrapped with insulation cotton, and the noise can be controlled within 72db at the minimum.

7、外部美觀:油漆采用高分子聚氨酯油漆,顏色可有業主自定,排氣管采用上排氣,確保美觀。
Exterior beautiful: paint USES high polymer polyurethane paint, color can have owner from decide, exhaust pipe USES on exhaust, ensure beautiful.

8、尺寸:車箱尺寸根據規格大小而定,操作人員可在四周行走,便于操作和維護。
Size: the size of the car box is determined according to the size of the specification. The operator can walk around, which is convenient for operation and maintenance.

9、消防:隨車可選配消防滅火器兩只。
Fire: the accessory optional two fire extinguishers.

移動200KW柴油發電機組 2018-5-10 本文被閱讀 6922 次
