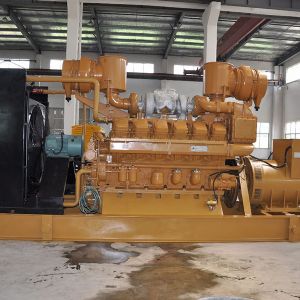

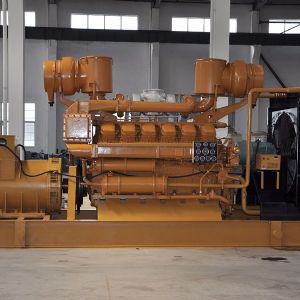

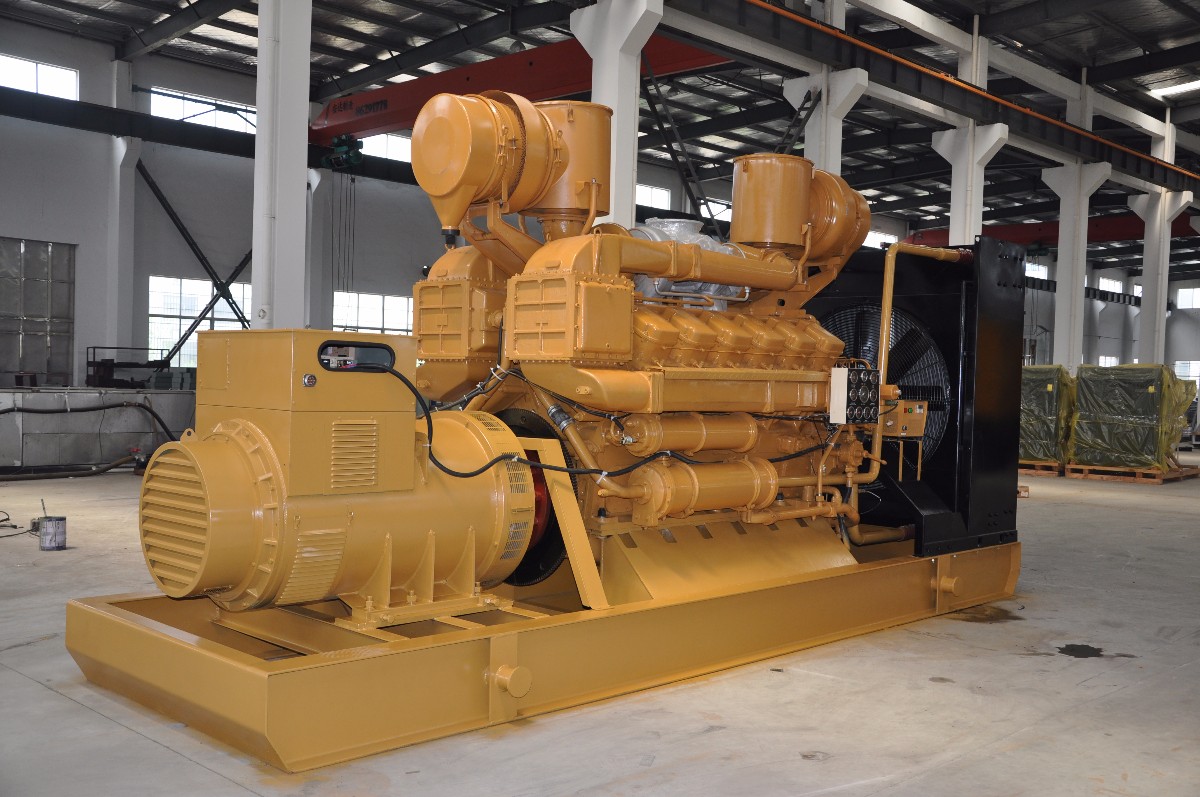

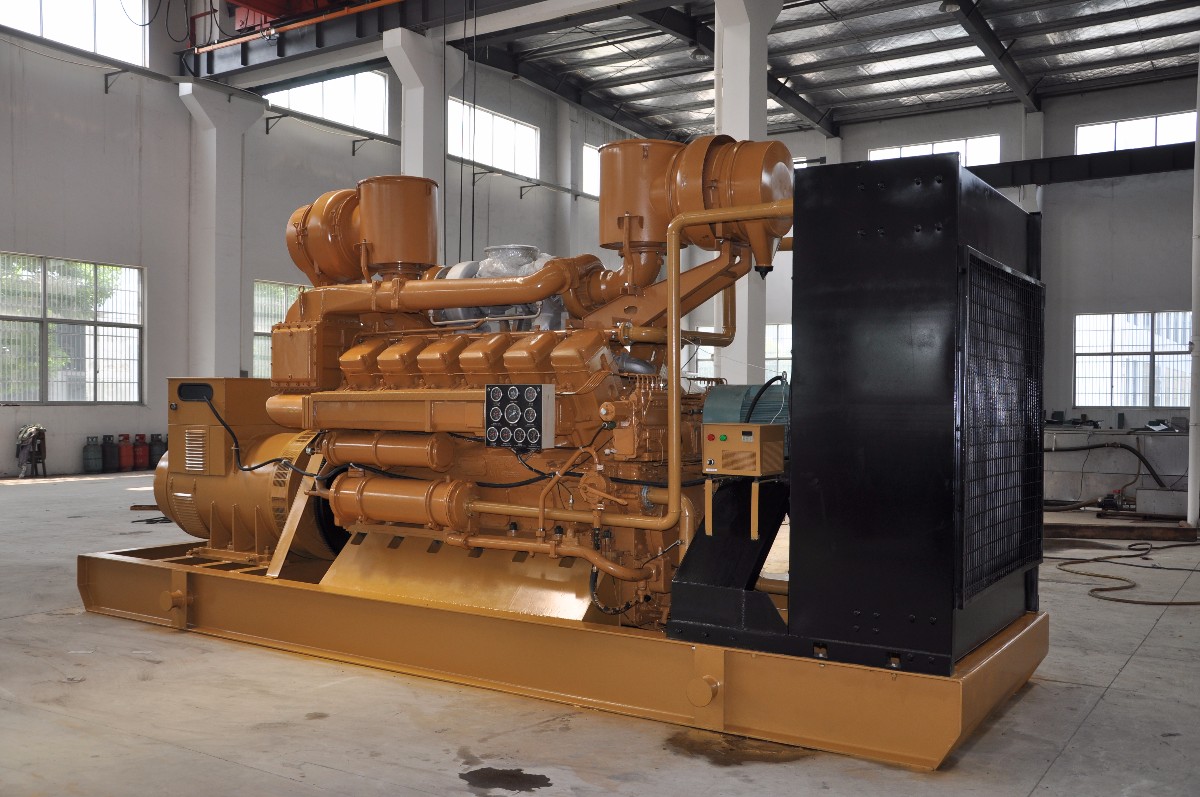

1200KW濟柴石油柴油發電機組
濟柴柴油機出自石油部企業濟南柴油機股份有限公司，該系列用途廣泛、性能優良的高速大功率柴油發電機組，產品榮獲“國優金質獎”“全國用戶滿意產品稱號”等。該發電機組產品經過多年的研制、開發，并且不斷地吸收現代內燃機領域中卓有成效的科技成果，具備技術經濟指示先進、結構緊湊、易于操作，維修方便，能適應各種惡環境條件下作業等特點。 JiChai diesel engine from the oil company jinan diesel engine co., LTD., the series is widely used, good performance of high speed high-power diesel generating sets, product won the "combined exposition" title of "national customer satisfaction product" and so on. This generator set of products after years of research, development, and continuously absorb the fruitful achievements in the field of modern internal combustion engine, with advanced technical indicators, compact structure, easy operation, convenient maintenance, can adapt to all kinds of bad environment under the condition of operation, etc. |
| 機組型號 | 輸出功率KW | 輸出功率KVA | 電流A | 柴油機型號 | 缸數 | 缸徑*行程mm | 潤滑油容量L | 油耗g/kw.g | 機組外形尺寸L×W×H | 機組重量kg |
| FM20GF | 20 | 25 | 36 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
| FM24GF | 24 | 30 | 43.2 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
| FM30GF | 30 | 37.5 | 54 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
| FM40GF | 40 | 50 | 72 | K4100ZD | 4 | 100*115 | 10 | 238 | 1700*800*1350 | 650 |
| FM50GF | 50 | 62.5 | 90 | ZH4105ZD | 4 | 105*115 | 12 | 238 | 1800*800*1400 | 800 |
| FM75GF | 75 | 93.75 | 135 | R6105ZD | 6 | 105*115 | 15 | 238 | 2100*850*1500 | 1000 |
| FM100GF | 100 | 125 | 180 | R6105AZLD | 6 | 105*115 | 15 | 238 | 2200*850*1650 | 1100 |
| FM120GF | 120 | 150 | 216 | R6105IZLD | 6 | 105*120 | 15 | 238 | 2200*850*1650 | 1200 |
| FM150GF | 150 | 187.5 | 270 | 6110IZLD | 6 | 110*115 | 18 | 238 | 2400*850*1650 | 1300 |
| FM200GF | 200 | 250 | 360 | 6126ZLD | 6 | 126*120 | 28 | 238 | 2600*900*1750 | 1800 |
| FM250GF | 250 | 312.5 | 450 | 6126ALD | 6 | 126*125 | 28 | 238 | 2600*900*1750 | 2000 |
| FM300GF | 300 | 375 | 540 | 6126IZLD | 6 | 126*130 | 28 | 238 | 2800*900*1800 | 2200 |
| 1.以上技術參數轉速為1500RPM，頻率50HZ，額定電壓400/230V，功率因數0.8，接線方式為三相四線。 2.發電機可以根據客戶需求，選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考，如有更改恕不另行通知。 | ||||||||||
| 標準配置 Standard equipment： 發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器 、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池 電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame | ||||||||||
| 可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換 開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater |
