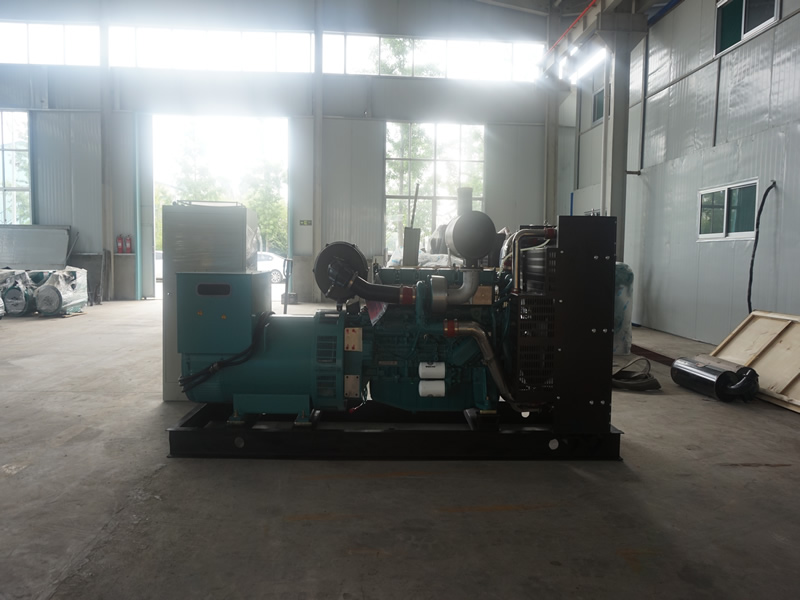

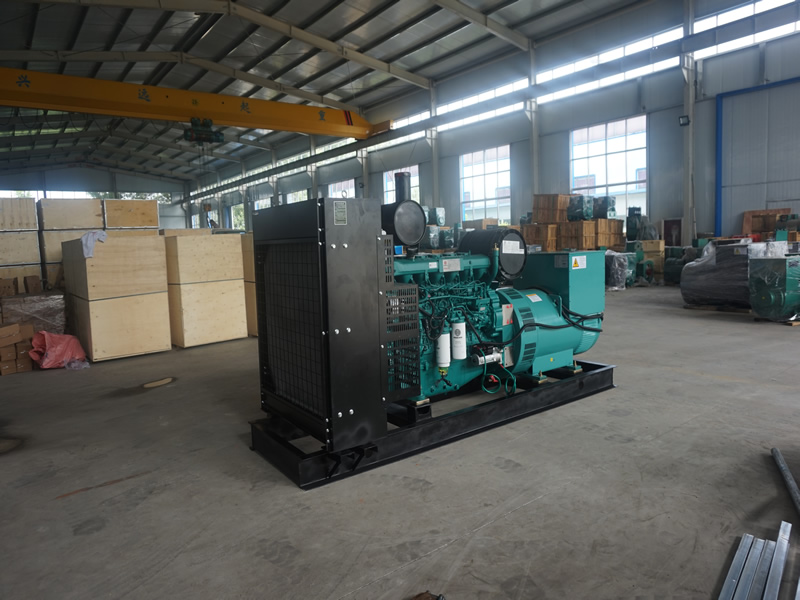

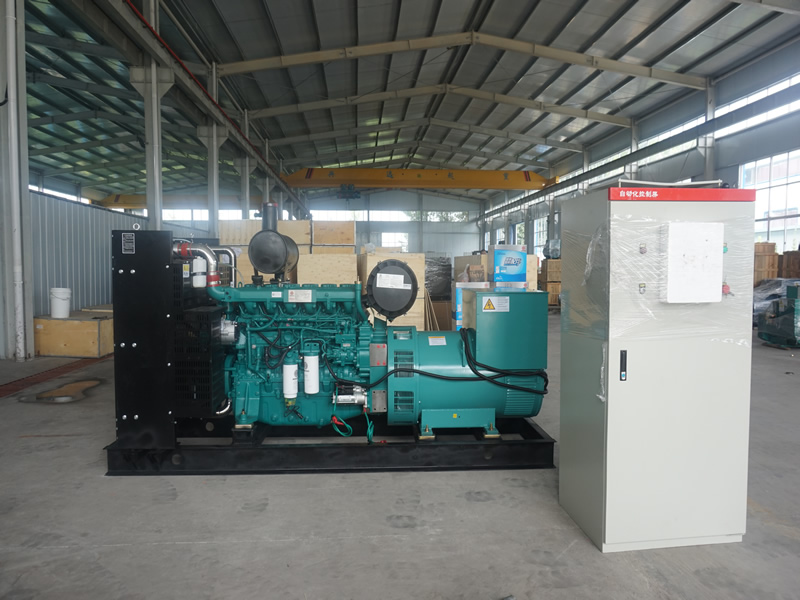

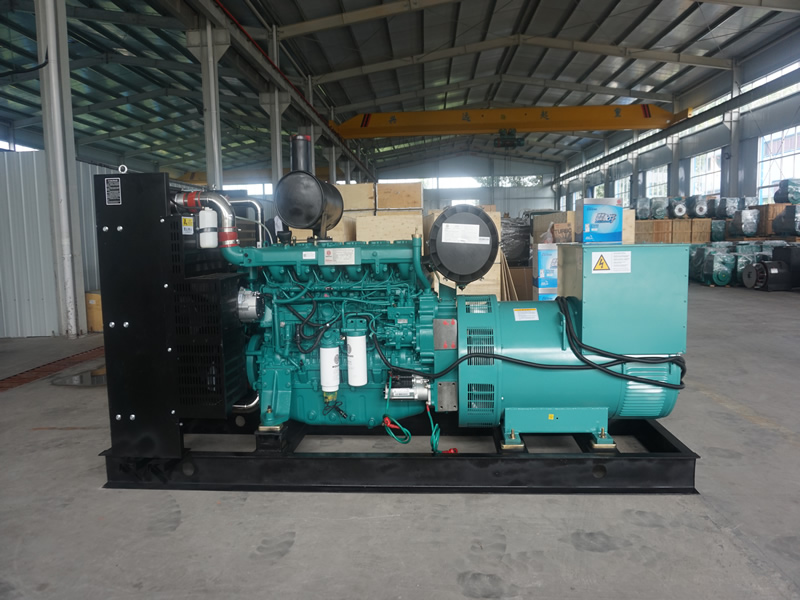

濰柴股份400KW柴油發電機組
濰柴動力股份柴油機高效可靠、高保有量濰柴近70年，超過300萬臺贏得了廣大客戶的尊重和認可。產品平均大修期為30000小時以上采用旋向錦旗輕量化空濾器，外形美觀中置下翻反旋增壓器，優化管路設計 產品滿足非道路國二階段、國三階段發動機帶載能力強，滿足負載突變工礦要求噪音低、振動小采用加強型噴油泵，提高供油壓力發動機經歷高原、高溫、高寒洗禮-10°無輔助措施可成功啟動機組。配套功率 15KW-1200KW. In the last 70 years, more than 3 million diesel engines have won the respect and recognition of customers. Product overhaul period for an average of 30000 hours the spin to the pennants lightweight air filter, under the beautiful shape of the screw supercharger, to optimize the design of the piping products meet the road the second stage, the three phase motor load ability, meet the requirements of the load mutation mining low noise, small vibration using enhanced fuel injection pump, increase the oil pressure, high temperature, engine experience plateau alpine baptism - 10 ° no auxiliary measures can be successfully started. Supporting power 15KW-1200KW. |
| 機組型號 | 輸出功率KW | 輸出功率KVA | 電流 A | 柴油機型號 | 缸數 | 缸徑*行程 mm | 潤滑油容量 L | 油耗 g/kw.g | 機組外形尺寸 L×W×H | 機組重量 kg |
| 濰柴動力揚柴系列 | ||||||||||
| FM15GF | 15 | 18.75 | 27 | WP2.1D18E2 | 4 | 85*92 | 12 | 195 | 1600*700*1200 | 350 |
| FM20GF | 20 | 25 | 36 | WP2.3D25E200 | 4 | 90*100 | 14 | 195 | 1600*700*1250 | 450 |
| FM30GF | 30 | 37.5 | 54 | WP2.3D33E200 | 4 | 90*100 | 14 | 195 | 1700*700*1350 | 500 |
| FM35GF | 35 | 43.75 | 63 | WP2.3D40E200 | 4 | 90*100 | 14 | 195 | 1700*700*1350 | 600 |
| FM45GF | 45 | 56.25 | 81 | WP2.3D48E200 | 4 | 90*100 | 14 | 195 | 1800*750*1350 | 700 |
| FM60GF | 60 | 75 | 108 | WP4.1D66E200 | 4 | 105*125 | 15 | 195 | 1800*750*1450 | 800 |
| FM90GF | 90 | 112.5 | 162 | WP4.1D100E200 | 4 | 105*125 | 16 | 195 | 2200*850*1500 | 900 |
| 濰柴道依茨三缸機 | ||||||||||
| FM30GF | 30 | 37.5 | 54 | D226B-3D | 3 | 105*120 | 15 | 220 | 1700*800*1200 | 500 |
| FM45GF | 45 | 56.25 | 81 | TD226B-3D | 3 | 105*120 | 15 | 220 | 1800*800*1400 | 550 |
| 濰柴動力系列 | ||||||||||
| FM50KW | 50 | 62.5 | 90 | WP4D66E200 | 4 | 105*130 | 18 | 198 | 1900*900*1500 | 720 |
| FM80KW | 80 | 100 | 144 | WP4D100E200 | 4 | 105*130 | 20 | 198 | 2100*900*1500 | 800 |
| FM100KW | 100 | 125 | 180 | WP4D108E200 | 4 | 105*130 | 20 | 198 | 2100*900*1500 | 900 |
| FM120KW | 120 | 150 | 216 | WP6D132E200 | 6 | 105*130 | 22 | 198 | 2400*900*1500 | 1000 |
| FM140KW | 140 | 175 | 252 | WP6D152E200 | 6 | 105*130 | 22 | 198 | 2600*1000*1500 | 1200 |
| FM150KW | 150 | 187.5 | 270 | WP6D167E200 | 6 | 105*130 | 22 | 198 | 2600*1000*1500 | 1200 |
| FM180KW | 180 | 225 | 324 | WP10D200E200 | 6 | 126*130 | 25 | 198 | 2800*1200*1600 | 1500 |
| FM200KW | 200 | 250 | 360 | WP10D238E200 | 6 | 126*130 | 27 | 198 | 2800*1200*1600 | 1800 |
| FM250KW | 250 | 312.5 | 450 | WP10D264E200 | 6 | 126*130 | 27 | 198 | 2800*1200*1600 | 2000 |
| FM280KW | 280 | 350 | 504 | WP12D317E200 | 6 | 126*155 | 32 | 198 | 3000*1250*1600 | 2200 |
| FM300KW | 300 | 375 | 540 | WP10D320E200 | 6 | 126*155 | 32 | 198 | 3000*1250*1600 | 2500 |
| FM350KW | 350 | 437.5 | 630 | WP13D385E200 | 6 | 127*165 | 32 | 198 | 3200*1350*1700 | 2800 |
| FM380KW | 380 | 475 | 684 | WP13D405E200 | 6 | 127*165 | 35 | 198 | 3200*1350*1700 | 3000 |
| FM400KW | 400 | 500 | 720 | WP13D440E310 | 6 | 127*165 | 35 | 198 | 3200*1350*1750 | 3200 |
| 濰柴重機系列 | ||||||||||
| FM450KW | 450 | 562.5 | 810 | WHM6160SD518-5 | 6 | 160*200 | 48 | 215 | 3600*1500*1800 | 3800 |
| FM550KW | 550 | 587.5 | 990 | WHM6160MD628-5 | 6 | 160*216 | 48 | 215 | 3600*1500*1800 | 4000 |
| 濰柴博杜安系列 | ||||||||||
| FM400KW | 400 | 500 | 720 | 6M26D447E200 | 6 | 150*150 | 60 | 210 | 3600*1500*1800 | 3600 |
| FM450KW | 450 | 562.5 | 810 | 6M26D484E200 | 6 | 150*150 | 60 | 210 | 3600*1500*1800 | 4000 |
| FM520KW | 520 | 650 | 936 | 6M33D572E200 | 6 | 150*185 | 60 | 210 | 3600*1500*1800 | 4500 |
| FM550KW | 550 | 687.5 | 990 | 6M33D605E200 | 6 | 150*185 | 60 | 210 | 3600*1500*1850 | 5000 |
| FM720KW | 720 | 900 | 1296 | 12M26D792E200 | 12 | 150*150 | 120 | 210 | 4500*1850*2200 | 7000 |
| FM820KW | 820 | 1025 | 1476 | 12M26D902E200 | 12 | 150*150 | 120 | 210 | 4500*1850*2200 | 7500 |
| FM900KW | 900 | 1125 | 1620 | 12M26D968E200 | 12 | 150*150 | 120 | 210 | 4600*1850*2250 | 8000 |
| FM1000KW | 1000 | 1250 | 1800 | 12M33D1108E200 | 12 | 150*185 | 135 | 210 | 4800*2000*2400 | 8600 |
| FM1100KW | 1100 | 1375 | 1980 | 12M33D1210E200 | 12 | 150*185 | 135 | 210 | 4800*2000*2500 | 9000 |
| 1.以上技術參數轉速為1500RPM，頻率50HZ，額定電壓400/230V，功率因數0.8，接線方式為三相四線。 2.發電機可以根據客戶需求，選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考，如有更改恕不另行通知。 | ||||||||||
| 標準配置 Standard equipment： 發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器 、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池 電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame | ||||||||||
| 可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換 開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater |
